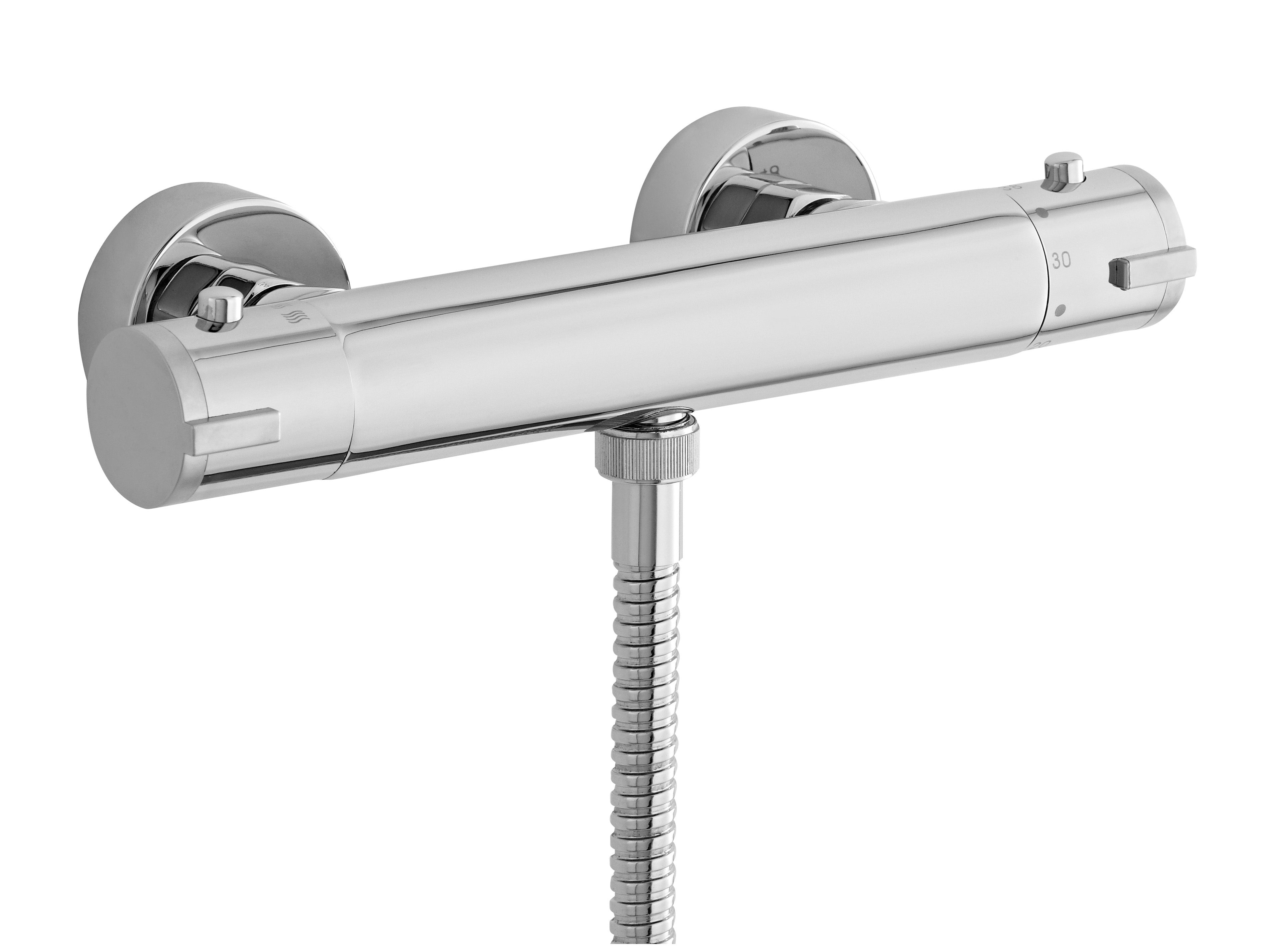

Bar Showers Minimalist Thermostatic Bar Valve

In stock
SKU: VBS009
(0)
£137.00 inc. VAT

Features & Benefits

  • Thermostatically controlled
  • Bottom outlet
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut-off
  • In the event of hot or cold water failure, the valve will shut down as per the relevant standard
  • Suitable for shower pumps
  • Manufactured from high-quality brass & ABS

Details

  • Guarantee no. of years 5
  • Brand Nuie
  • Range Shower Valves Round
  • Colour Chrome
  • Body Jets Included No
  • Flow Rate 0.1Bar l/m 4
  • Flow Rate 0.5Bar l/m 10
  • Flow Rate 1Bar l/m 17
  • Flow Rate 2Bar l/m 21
  • Flow Rate 3Bar l/m 26
  • Handset Included No
  • Head Included No
  • Operating Pressure 0.2
  • Outlet Elbow Included No

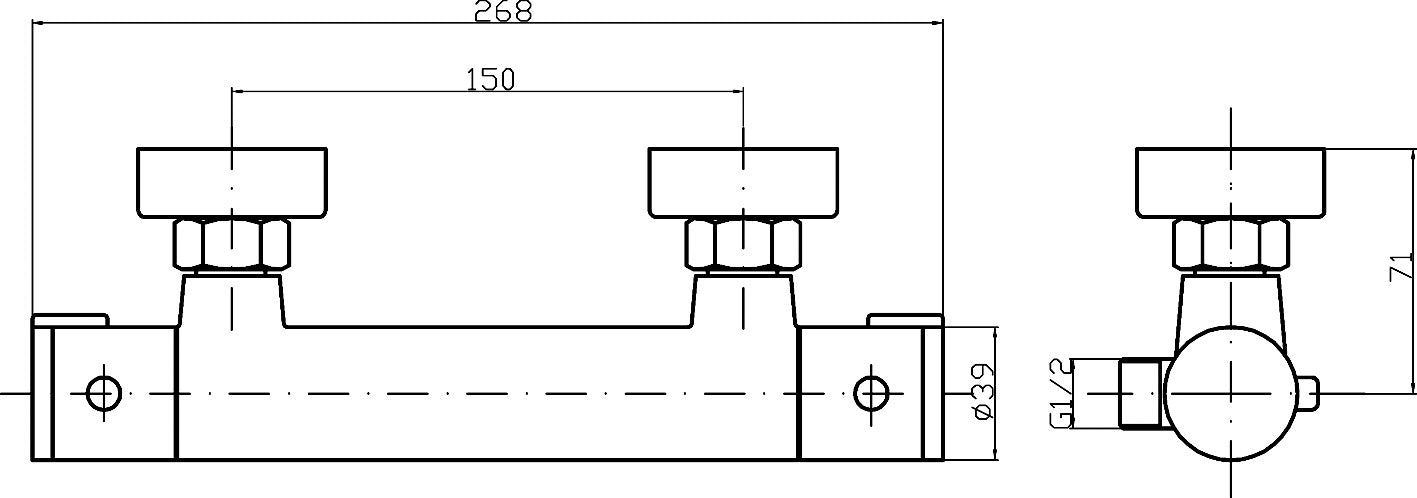

  • Pipe Centres 150 MM
  • Pipe Size 15 mm (1/2" BSP)
  • Product Depth 71mm
  • Product Height 39mm
  • Product Width 268mm
  • Shower Valve Style Shape Bar Valve
  • Stain Rust Resistant Yes
  • TMV2 Approved No
  • TMV3 Approved No
  • Valve Handle Included Yes
  • Valve Handle Type/Shape Round Handle
  • Valve Included Yes
  • Valve/Cartridge Type 1/4 Turn Ceramic Disc
  • WRAS Approved NO
