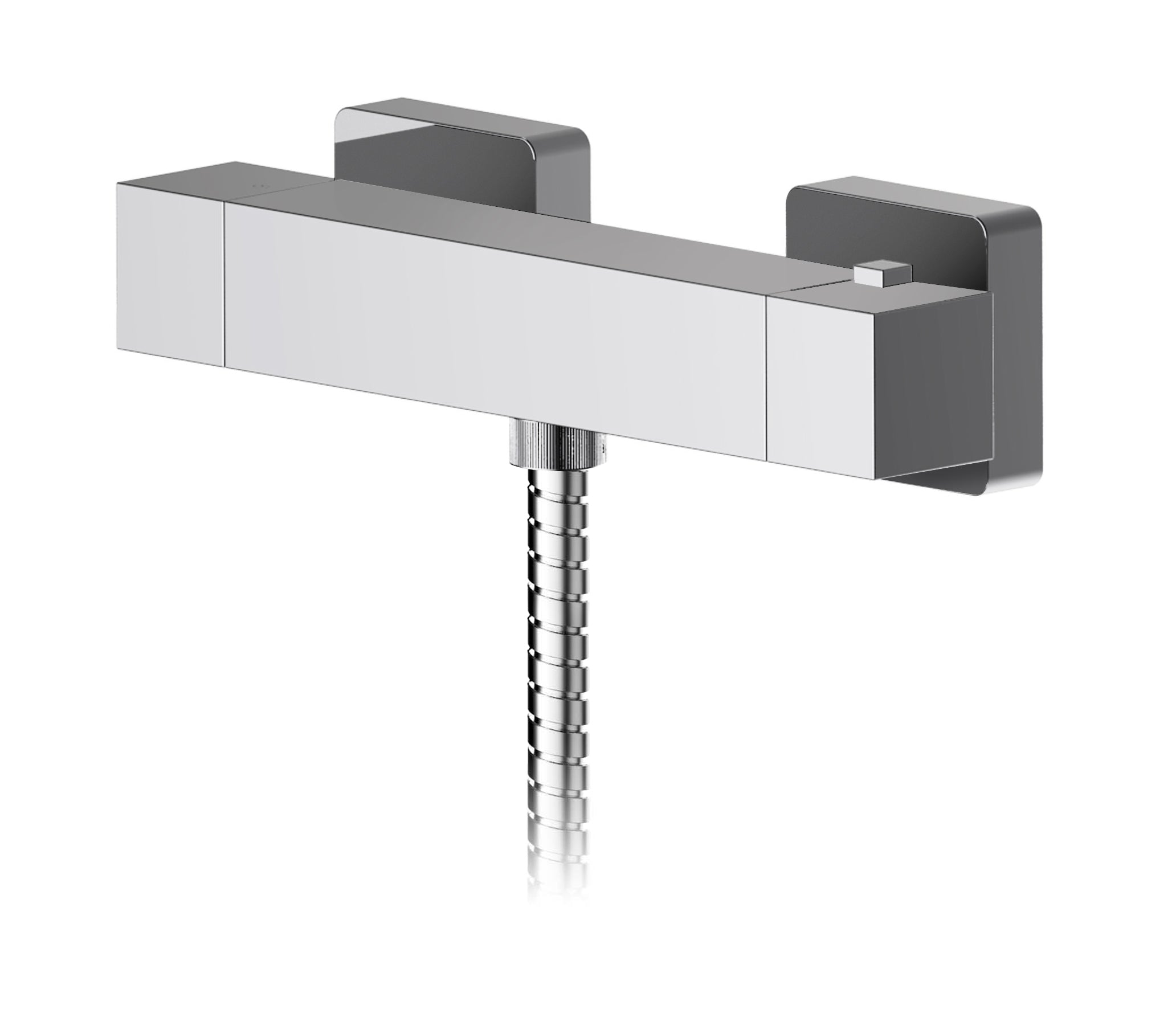

Sanford Thermostatic Bar Valve

In stock
SKU: SAN503
(0)
£183.00 inc. VAT

Features & Benefits

  • Thermostatically controlled
  • Bottom outlet
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut-off
  • In the event of hot or cold water failure, the valve will shut down as per the relevant standard
  • Suitable for unvented mains pressure systems
  • Suitable for shower pumps
  • Manufactured from high-quality brass & ABS

Details

  • Guarantee no. of years 5
  • Brand Nuie
  • Range Shower Valves Square
  • Colour Chrome
  • Body Jets Included No
  • Flow Rate 0.1Bar l/m 3.3
  • Flow Rate 0.2Bar 1/m 4.7
  • Flow Rate 0.5Bar l/m 7.9
  • Flow Rate 1Bar l/m 11.3
  • Flow Rate 2Bar l/m 16.2
  • Flow Rate 3Bar l/m 19.8
  • Handset Included No
  • Head Included No
  • No. Of Handles 2
  • Operating Pressure 0.2

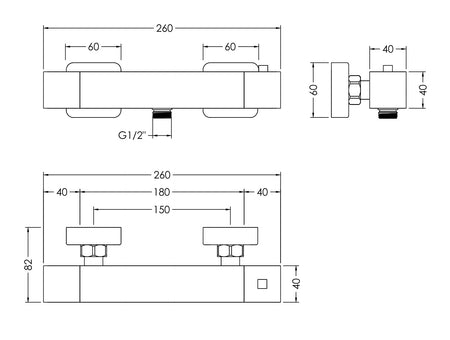

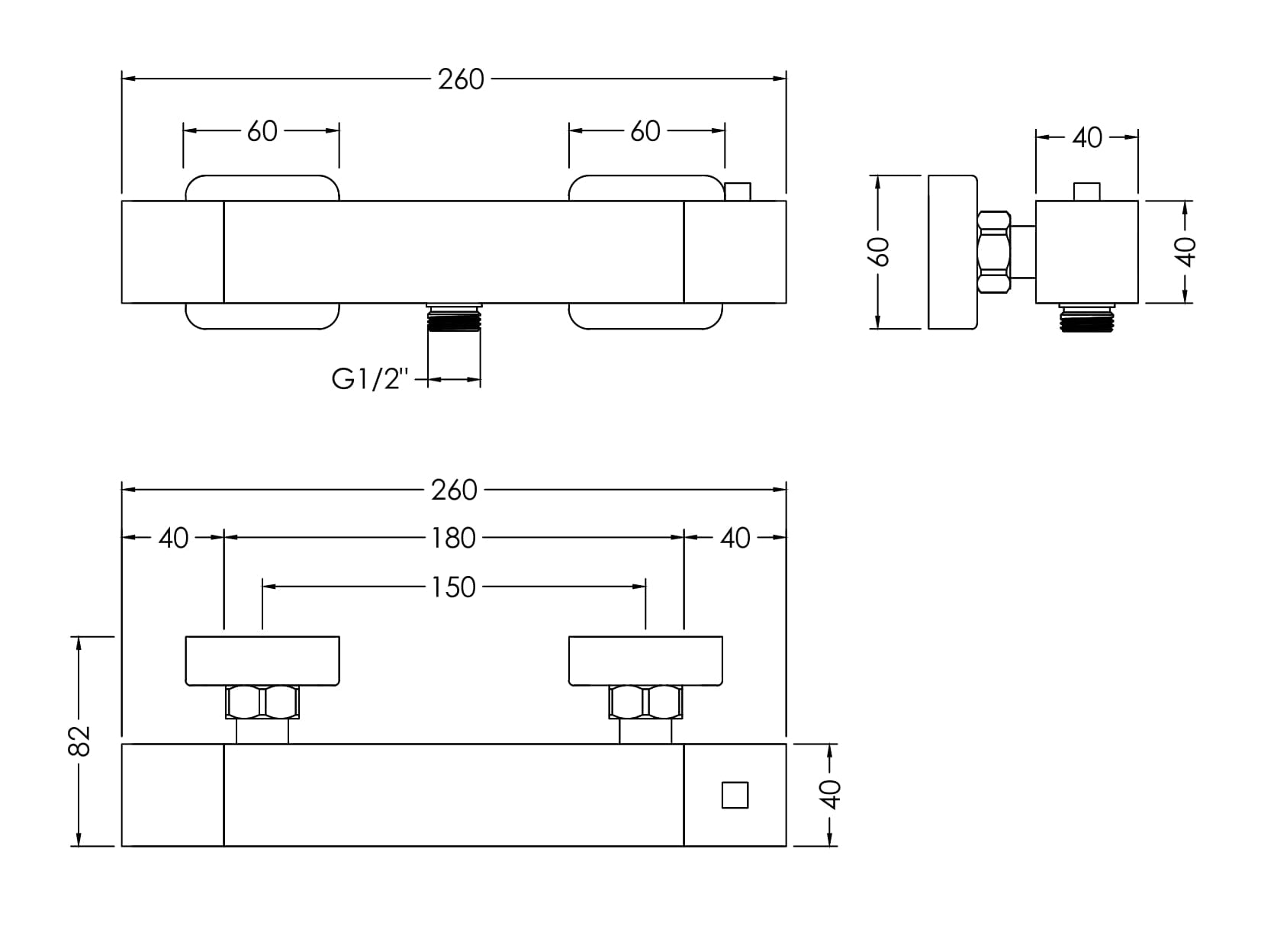

  • Pipe Centres 150
  • Pipe Size 15 mm (1/2" BSP)
  • Product Depth 72mm
  • Product Height 55mm
  • Product Width 275mm
  • Shower Valve Style Shape Square
  • Stain Rust Resistant Yes
  • TMV2 Approved No
  • TMV3 Approved No
  • Valve Handle Included Yes
  • Valve Handle Type/Shape Square Handle
  • Valve Included Yes
  • Valve Mount Type Exposed Shower
  • Valve/Cartridge Type 1/4 Turn Ceramic Disc
  • WRAS Approved NO
