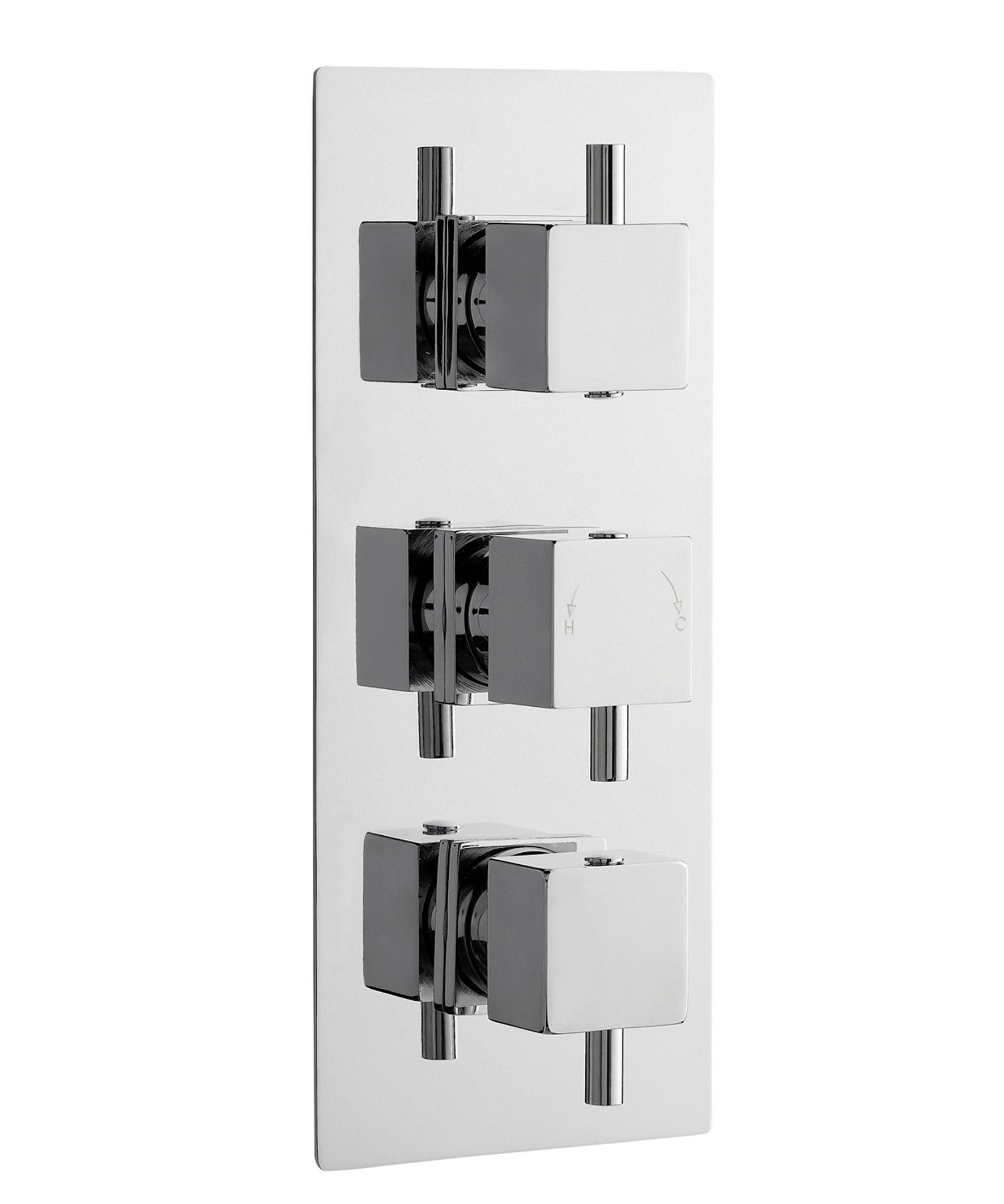

Square Showers Triple Thermostatic Shower Valve

In stock
SKU: JTY303
(0)
£390.00 inc. VAT

Features & Benefits

  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut-off
  • In the event of hot or cold water failure, the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium buildup - even in hard water areas
  • Our valves are suitable for use with all systems: gravity-fed pumped unvented high-pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high-quality brass & ABS

Details

  • Guarantee no. of years 5
  • Brand Nuie
  • Range Shower Valves Square
  • Colour Chrome
  • Flow Rate 0.1Bar l/m 5.5
  • Flow Rate 0.2Bar 1/m 7.1
  • Flow Rate 0.5Bar l/m 14
  • Flow Rate 1Bar l/m 20
  • Flow Rate 2Bar l/m 29
  • Flow Rate 3Bar l/m 44
  • Handset Included No
  • Head Included No
  • No. Of Handles 3
  • Operating Pressure 0.1
  • Outlet Elbow Included No
  • Pipe Size 15 mm (1/2" BSP)

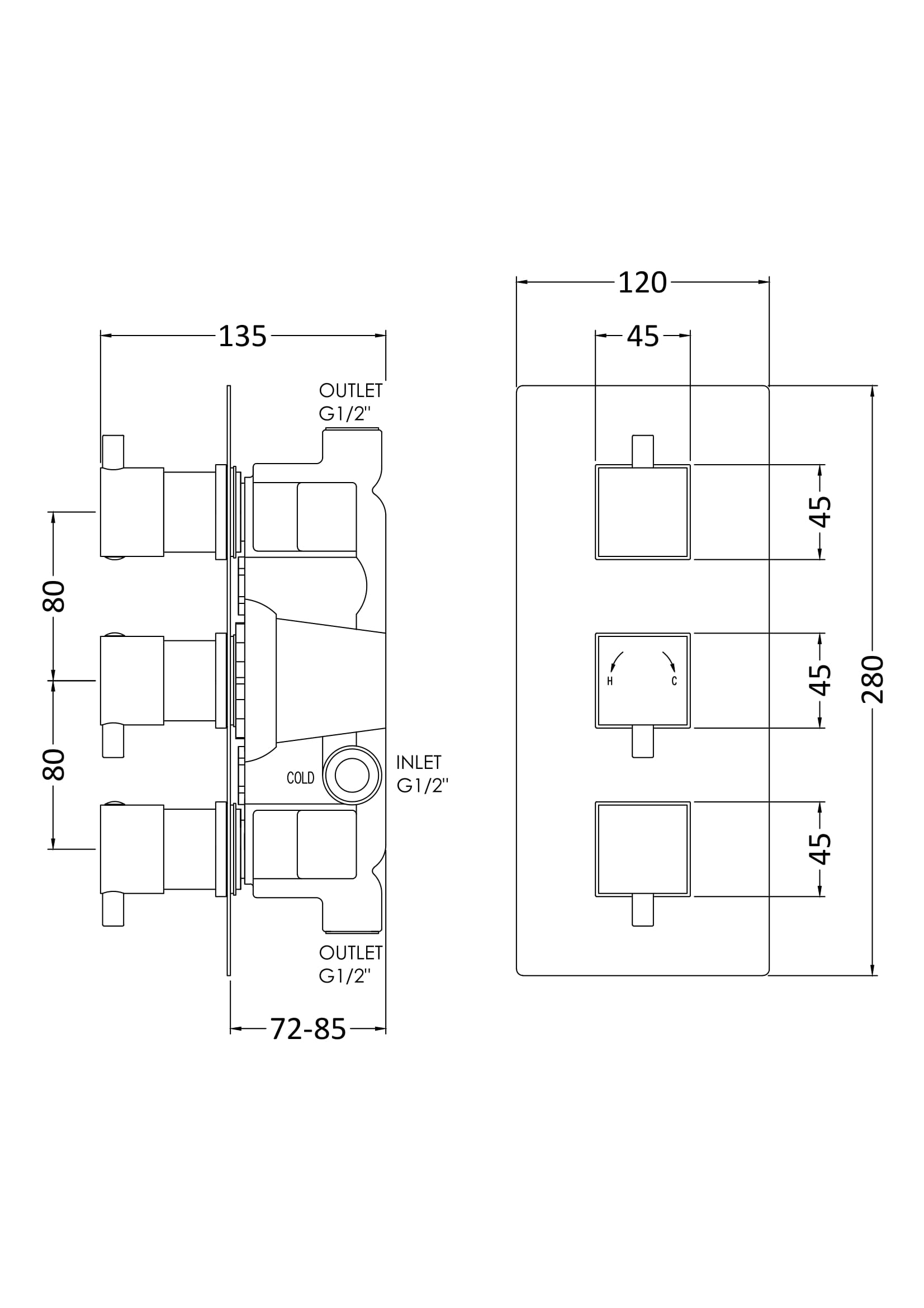

  • Product Depth 136mm
  • Product Height 280mm
  • Product Width 120mm
  • Shower Valve Style Shape Rectangular
  • Stain Rust Resistant Yes
  • TMV2 Approval Number BC 1875 00817
  • TMV2 Approved No
  • TMV3 Approval Number NSF 1938 1217
  • TMV3 Approved No
  • Valve Handle Included Yes
  • Valve Handle Type/Shape Lever Handle
  • Valve Included Yes
  • Valve Mount Type Concealed Shower
  • Valve/Cartridge Type 1/4 Turn Ceramic Disc
  • WRAS Approval Number 2204707
  • WRAS Approved Yes
